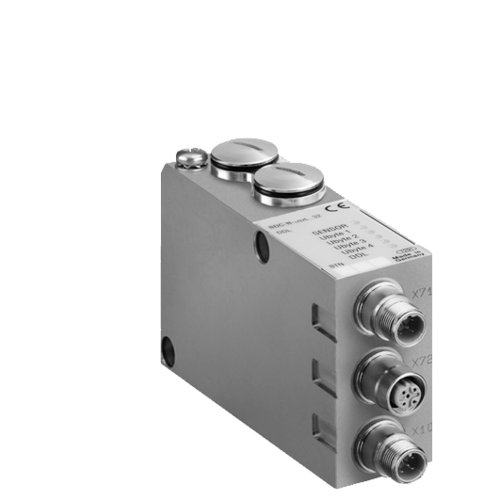

Series MS01 Aventics art. R412009573
Specifications
| Version | Bus coupler with driver |
| Ambient temperature min./max. | 0 ... 50 °C |
| Operational voltage electronics | 24 V DC |
| Electronics voltage tolerance | -15% / +20% |
| Power consumption electronics | 0,05 A |
| Operating voltage, actuators | 24 V DC |
| Total current for actuators | 3 A |
| Protection class | IP65 |
| Number of solenoid coils max. | 32 |
| Max. power consumption per coil | 0,1 mA |
| Generic emission standard in accordance with norm | EN 61000-6-4 |
| Generic immunity standard in accordance with norm | IEC 61000-6-2 |
| Weight | 0,29 kg |
| Max. number of valves: 16 double solenoid or 32 single solenoid You will find assignment schemes for the product in the operating instructions, or contact the nearest AVENTICS sales office. Caution: A reduced temperature range in accordance with the operating instructions may need to be considered in ATEX applications. |
| Material |
|---|
| Housing | Die-cast aluminum |
