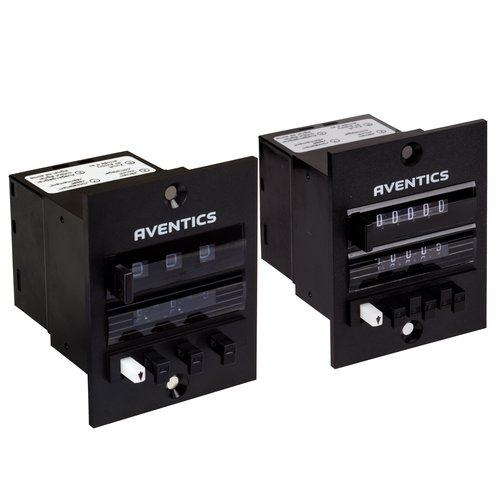

Pneumatic totalizer Aventics art. 0821304005
Specifications
| Logic function | Pneumatic/mechanic counter, adding |
| Mounting orientation | Any |
| Working pressure min./max. | 2 ... 8 bar |
| Ambient temperature min./max. | 0 ... 60 °C |
| Medium temperature min./max. | 0 ... 60 °C |
| Medium | Compressed air |
| Max. particle size | 40 µm |
| Oil content of compressed air | 0 ... 1 mg/m³ |
| Display | 6 digits |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . |
