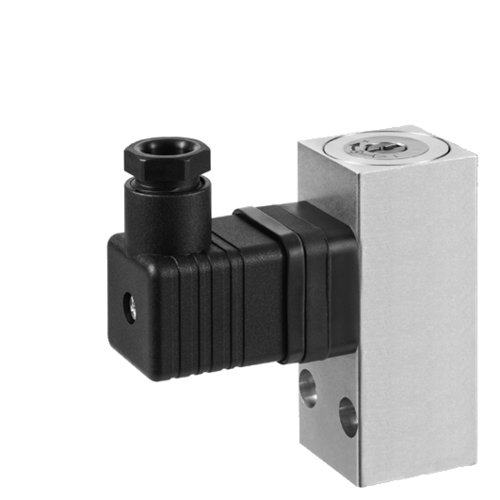

Switches Aventics art. R412010719
Specifications
| Type | Mechanical |
| Function | change-over contact (mechanical) |
| Mounting orientation | Any |
| Working pressure min./max. | See table |
| Ambient temperature min./max. | -20 ... 80 °C |
| Medium temperature min./max. | -10 ... 80 °C |
| Medium | Compressed air, Hydraulic oil |
| Measurement | Relative pressure |
| Switching element | microswitch (input/output) |
| Protection against overpressure | 80 bar |
| Max. switching frequency | 1,5 Hz |
| Shock resistance max. | 15 g |
| Vibration resistance | 10 g (60 - 500 Hz) |
| Repeatability (% of full scale value) | ± 1 % |
| Switching point | adjustable |
| Hysteresis | max. switching pressure difference |
| DC operating voltage min./max. | 12 ... 30 V DC |
| Operational voltage AC min./max. | 12 ... 30 V AC |
| Mounting types | via through holes |
| Protection class | IP67 |
| Electr. connection | Plug M12x1 |
| Weight | 0,15 kg |
| Switching function increasing pressure: contact switches from 1-2 to 1-3.Switching function decreasing pressure: contact switches from 1-3 to 1-2. Notice:Too-high currents can damage contacts. Inductive or capacitive loads must be equipped with appropriate spark-quenching! The microswitch has silver-plated contacts. |
| Material |
|---|
| Housing | Aluminum |
| Seals | Acrylonitrile butadiene rubber |
| Electr. connection | Brass, nickel-plated |
