To receive a proposal, please send your request to info@aventics-sensors.in and specify the required positions and company details.

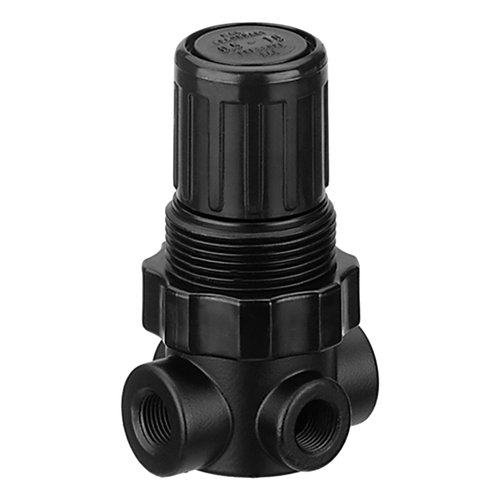

Safety valves Aventics art. 0821302043
Specifications
| Working pressure min./max. | 0 ... 10 bar |
| Adjustment range min./max. | See table |
| Medium | Compressed air Neutral gases |
| Max. particle size | 5 µm |
| Nominal flow Qn | 300 l/min |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . Mounting with mounting bracket 1821331013 panel installation |
| Material |
|---|
| Housing | Die cast zinc |
