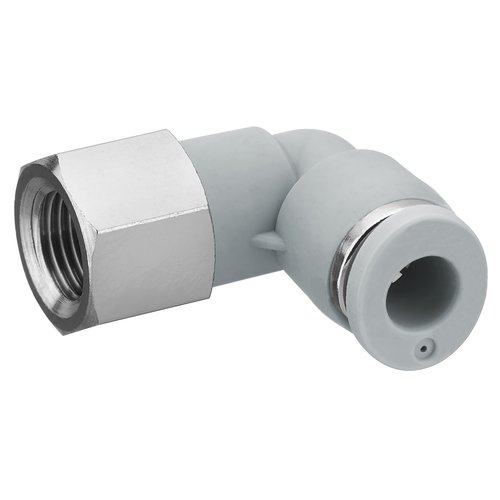

QR1-S series standard Aventics art. R432000202
Specifications
| Working pressure min./max. | -0,95 ... 10 bar |
| Ambient temperature min./max. | 0 ... 60 °C |
| Weight per piece | See table |
| The series QR1 (plastic) and QR2 (metal) can not be combined These pneumatic components with NPT or inch thread dimensions are only available from our US sales organization. |
| For further information about assembling and tolerances of adaptable tubing can be found in the “Technical information” document (available in the MediaCentre). |
| Material |
|---|
| Material | nickel-plated |
| Housing | Polybutyleneterephthalate |
| Seal | Acrylonitrile butadiene rubber |
| Tooth lock washer | Stainless steel |
| Release ring | Polyoxymethylene |
| Release ring holder | Die cast zinc Brass, nickel-plated |
| Thread | Brass, nickel-plated |
