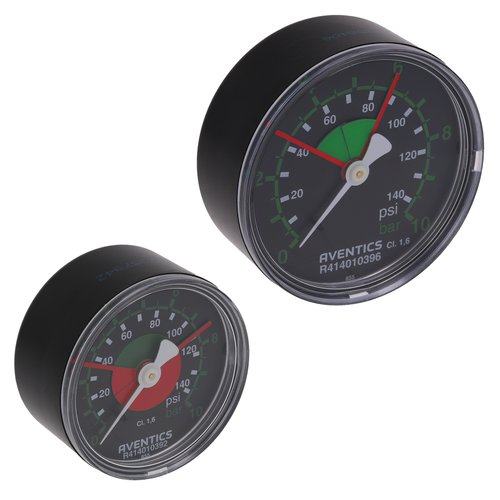

Pressure gauges Aventics art. R414010388
Specifications
| Version | Bourdon tube pressure gauge |
| Version | with adjustable work area display |
| Standardization | EN 837-1 |
| Ambient temperature min./max. | -40 ... 60 °C |
| Medium | Compressed air |
| Work area | adjustable work area display |
| Work Area Display, Color | Red Green |
| Main scale unit (outside) | bar |
| Main scale color (outside) | Green |
| Secondary scale unit (inside) | psi |
| Secondary scale color (inside) | White |
| Background color | Black |
| Pointer color | White |
| Weight | 0,09 kg |
| To set the operating range, the cover (inspection glass) must be removed. To do this, carefully lift the inspection glass by inserting a pointed or flat object in the slot provided for this purpose on the housing circumference. |
| Material |
|---|
| Housing | Acrylonitrile butadiene styrene |
| Thread | Brass |
| Viewing window | Polystyrene |
