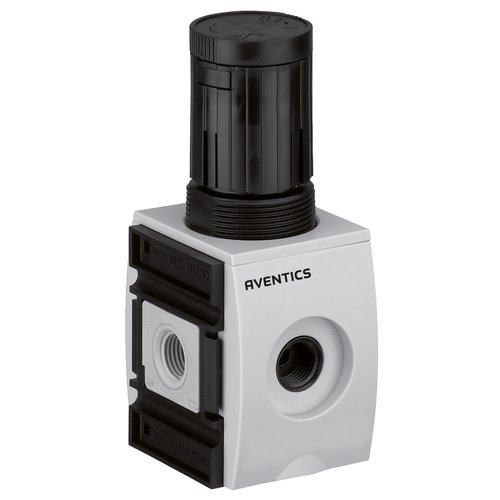

Precision control valve Aventics art. R412006146
Specifications
| Parts | Precision pressure regulator |
| Mounting orientation | Any |
| Working pressure min./max. | 0,2 ... 16 bar |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air Neutral gases |
| Regulator type | Diaphragm-type pressure regulator Can be assembled into blocks |
| Regulator function | with relieving air exhaust |
| Adjustment range min./max. | 0,2 ... 4 bar |
| Lock type | with E11 locking |
| Pressure supply | single |
| Activation | Mechanical |
| Internal air consumption qv max. | 2,6 l/min |
| Weight | 0,248 kg |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The rear pressure gauge connection on the pressure regulator is closed with a blanking plug, the front connection is open. Depending on the customer application, a second blanking plug may be necessary. Please order separately (see accessories). The E11 locking is delivered without a key (see accessories for keys). A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180° about the vertical axis. Please see the operating instructions for further details. Recommended pre-filter: 5 µm |
| Material |
|---|
| Housing | Polyamide |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
| Threaded bushing | Die cast zinc |
