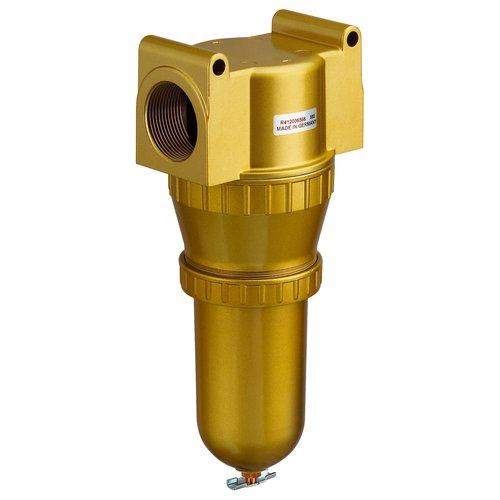

Filter, Series MU1-FLS Aventics art. R412006562
Specifications
| Version | Standard filter |
| Parts | Filter |
| Mounting orientation | vertical |
| Working pressure min./max. | See table |
| Ambient temperature min./max. | -10 ... 60 °C |
| Medium temperature min./max. | -10 ... 60 °C |
| Medium | Compressed air Neutral gases |
| Filter reservoir volume | 65 cm³ |
| Filter element | exchangeable |
| filter porosity | 40 µm |
| Condensate drain | See table |
| Weight | 1,05 kg |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . Mounting: mounting bracket R412004874 or installation in piping |
| Material |
|---|
| Housing | Die-cast aluminum |
| Seals | Acrylonitrile butadiene rubber |
| Reservoir | Polycarbonate Die cast zinc |
| Protective guard | Steel |
| Filter insert | Polyethylene |
