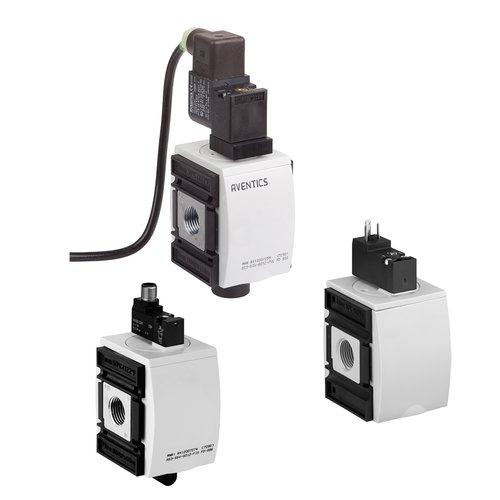

Filling block Aventics art. R412007393
Specifications
| Version | Poppet valve, Can be assembled into blocks |
| Pilot | Internal |
| Sealing principle | Soft sealing |
| Working pressure min./max. | 0 ... 16 bar |
| Control pressure min./max. | 2,5 ... 16 bar |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air Neutral gases |
| Max. particle size | 25 µm |
| Duty cycle | 100 % |
| Protection class according to EN 60529:2000, without electrical connector | IP65 |
| Weight | 0,924 kg |
| The delivered product varies from that in the illustration. See the drawing for an exact description. |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The filling valve builds up pressure slowly in the pneumatic systems, i.e. prevents a sudden pressure build-up during a recommissioning after a mains pressure failure or avoids emergency OFF switching. This allows dangerous abrupt cylinder motions to be avoided. Actuating the electric priority circuit disrupts the slow pressure build-up and pressure p1 is immediately applied. A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180° about the vertical axis. Please see the operating instructions for further details. |
| Material |
|---|
| Housing | Polyamide |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
| Threaded bushing | Die cast zinc |
