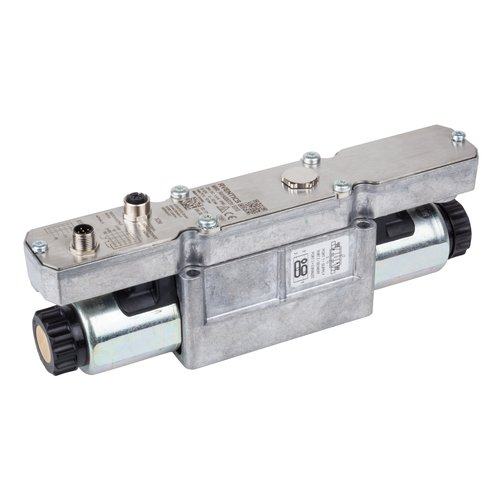

E/P control valve Aventics art. R414009800 for sale

Version	Poppet valve
Mounting orientation	α = 0 ... 90° ±β = 0 ... 90°
Certificates	CE declaration of conformity
Ambient temperature min./max.	5 ... 50 °C
Medium temperature min./max.	5 ... 50 °C
Medium	Compressed air
Max. particle size	50 µm
Oil content of compressed air	1 mg/m³
Nominal flow Qn	1300 l/min
Control	Analog
DC operating voltage	24 V
Voltage tolerance DC	-20% / +30%
Hysteresis	< 0.03 bar < 0.03 bar
Permissible ripple	5%
Max. power consumption	1400 mA
Protection class	IP65
Weight	2,05 kg
	Nominal flow Qn with working pressure 7 bar , with secondary pressure 6 bar and Δp = 0.2 bar

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre).

With oil-free, dry air, other installation positions are possible on request. The protection class is only ensured when the plug is mounted properly. For detailed information, see operating instructions. If the external sensor fails, the pressure regulator can open fully and the maximum permissible pressure in your system may be exceeded. The short-circuit-resistant switch output (X2M pin 1) switches to +Ub when the regulated pressure is within the tolerance range of ±200 mbar for at least 100 ms (applies to external sensor 0 – 10 bar). The supply pressure is controlled when the set point is applied but the external sensor's signal is missing (e.g. wire break). Set up appropriate measures to ensure fail-safe behavior even in case of failure of the external sensor.
