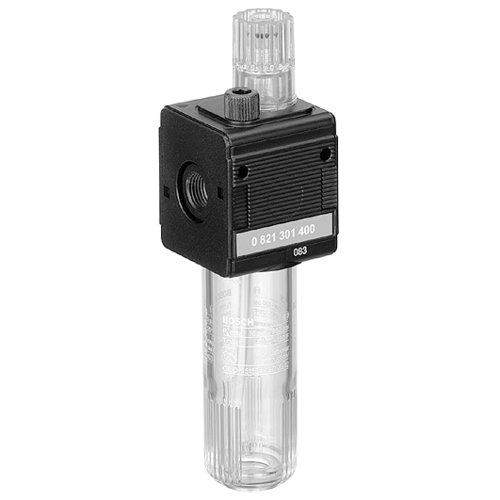

Standard Oil Mist Lube, NL2-LBS Series Aventics art. 0821301441
Specifications
| Version | Oil-mist lubricator, Can be assembled into blocks |
| Parts | Standard oil-mist lubricator |
| Mounting orientation | vertical |
| Working pressure min./max. | 0,5 ... 16 bar |
| Ambient temperature min./max. | -10 ... 60 °C |
| Medium temperature min./max. | -10 ... 60 °C |
| Medium | Compressed air Neutral gases |
| Lubricator reservoir volume | 50 cm³ |
| Type of filling | Manual oil filling |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The entire preset drip quantity enters the pressure system. Manual oil filling possible during operation. Note: Polycarbonate reservoirs are susceptible to solvents, supplementary information can be found at "Customer information". A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180° about the vertical axis. Please see the operating instructions for further details. | |
| Oil dosing at 1000 l/min | 1-2 drops |
| Material |
|---|
| Housing | Die cast zinc |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
| Reservoir | Polycarbonate Die cast zinc |
| Protective guard | Steel |
