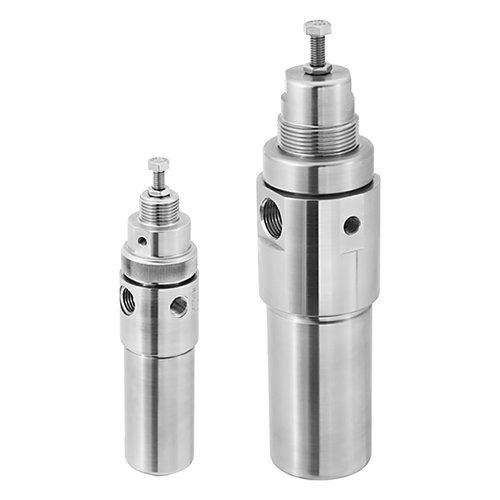

Control valve Aventics art. R432034670
Specifications
| Parts | Pressure regulator |
| Mounting orientation | Any |
| Working pressure min./max. | 0,5 ... 17 bar |
| Ambient temperature min./max. | -30 ... 80 °C |
| Medium temperature min./max. | -30 ... 80 °C |
| Medium | Compressed air Neutral gases |
| Regulator type | Diaphragm-type pressure regulator |
| Regulator function | with relieving air exhaust |
| Adjustment range min./max. | 0,5 ... 9 bar |
| Pressure supply | single |
| Activation | Mechanical |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . These pneumatic components with NPT or inch thread dimensions are only available from our US sales organization. |
| Material |
|---|
| Housing | Stainless steel, acid-proof |
| Seals | Acrylonitrile butadiene rubber |
