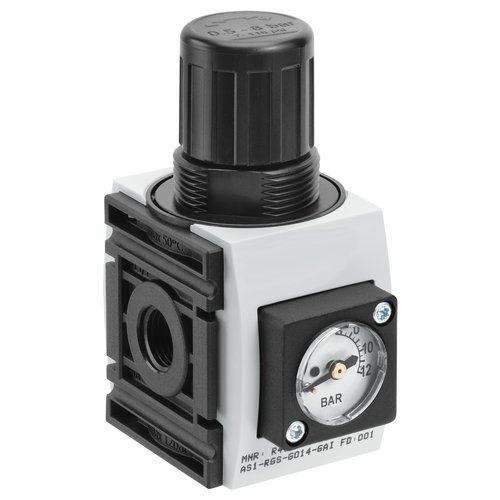

Control valve Aventics art. R412014628
Specifications
| Parts | Pressure regulator |
| Mounting orientation | Any |
| Working pressure min./max. | See table |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air Neutral gases |
| Regulator type | Diaphragm-type pressure regulator Can be assembled into blocks |
| Regulator function | with relieving air exhaust |
| Adjustment range min./max. | See table |
| Activation | Manual |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . Relieving exhaust (≤ 0.3 bar over set pressure). With rear exhaust (> 3 bar ). |
| Material |
|---|
| Housing | Polyamide |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
