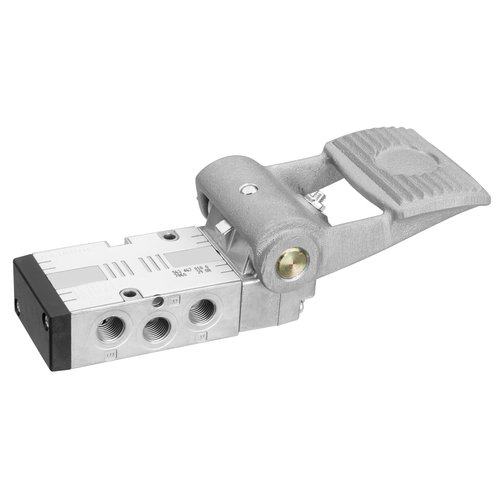

5/2-pneumatic distributor Aventics art. 5631310100
Specifications
| Version | Poppet valve |
| Activation | Mechanical |
| Lock type | not lockable |
| Actuating element | Hand lever, with detent |
| Switching principle | 5/2 |
| Sealing principle | Soft sealing |
| Nominal flow Qn | 1100 l/min |
| Working pressure min./max. | 0 ... 10 bar |
| Ambient temperature min./max. | -25 ... 80 °C |
| Medium temperature min./max. | -25 ... 80 °C |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Weight | 0,71 kg |
| Material |
|---|
| Housing | Die cast zinc |
| Seals | Acrylonitrile butadiene rubber |
| Actuating element | Polyarylamide |
