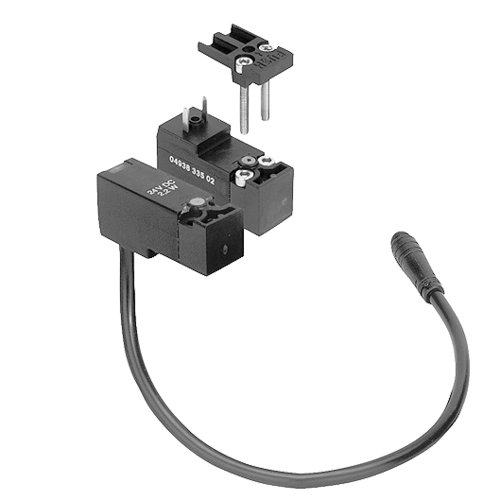

Pre-control valve Aventics art. 0493833502
Specifications
| Working pressure min./max. | 0 ... 10 bar |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air |
| Protection class with connection | See table |
| LED status display | Green |
| Duty cycle | 100 % |
| Weight | See table |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
