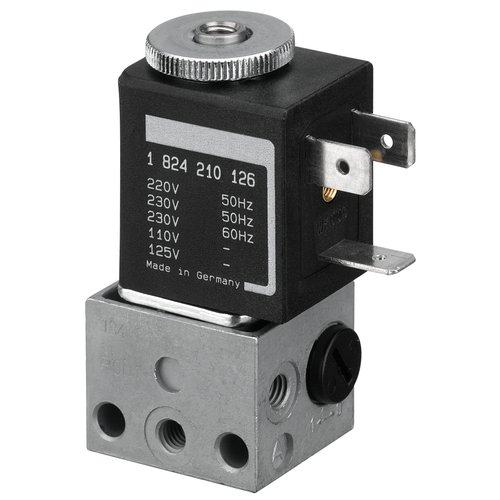

3/2 – pneumatic distributor Aventics art. 0820019005
Specifications
| Version | Poppet valve |
| Activation | Electrically |
| Sealing principle | Soft sealing |
| Blocking principle | Single base plate principle |
| Working pressure min./max. | See table |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air | 1 ... 5 mg/m³ |
| Nominal flow 1 ▶ 2 | 40 l/min |
| Nominal flow 2 ▶ 3 | 52 l/min |
| Compressed air connection | according to ISO 16030 |
| Reverse polarity protection | Protected against polarity reversal |
| Compatibility index | See table |
| Duty cycle | 100 % |
| Typ. switch-on time | 22 ms |
| Typ. switch-off time | 20 ms |
| Weight | See table |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| If the valves are blocked, the permissible ambient temperature drops to 35°C with a 100% duty cycle. |
| Material |
|---|
| Housing | Die cast zinc |
| Seals | Fluorocaoutchouc |
