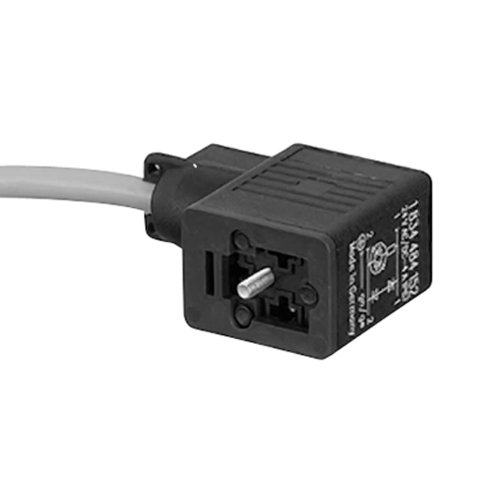

Valve plug connector, CON-VP series Aventics art. 1834484153
Specifications
| Ambient temperature min./max. | -20 ... 80 °C |
| Operationalvoltage | 24 V AC/DC |
| Protection class | IP67 |
| Protective circuit | Z-diode |
| Wire cross-section | 0,75 mm² |
| Mounting screw tightening torque | 0,4 Nm |
| Weight | See table |
| The specified protection class is only valid in assembled and tested state. |
| Material |
|---|
| Seals | caoutchouc/butadiene caoutchouc |
| Cable sheath | Polyvinyl chloride |
