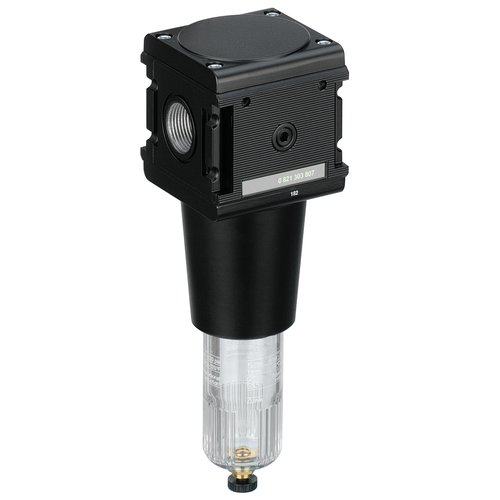

Ultrafine filter, Series NL6-FLC Aventics art. 0821303814
Specifications
| Version | Microfilter, Can be assembled into blocks |
| Parts | Microfilter |
| Mounting orientation | vertical |
| Certificates | suitable for ATEX |
| Working pressure min./max. | 1,5 ... 16 bar |
| Ambient temperature min./max. | -10 ... 60 °C |
| Medium temperature min./max. | -10 ... 60 °C |
| Medium | Compressed air Neutral gases |
| Filter reservoir volume | 150 cm³ |
| Filter element | exchangeable |
| filter porosity | 0,01 µm |
| Condensate drain | fully automatic, open without pressure |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . Suitable for use in Ex zones 1, 2, 21, 22. Note: Polycarbonate reservoirs are susceptible to solvents, supplementary information can be found at "Customer information". A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180° about the vertical axis. Please see the operating instructions for further details. Reservoir: metal, with bayonet catch | |
| Recommended pre-filtering | 0,3 µm |
| Max. achievable compressed air class acc. to ISO 8573-1:2010 | 1 : - : 2 |
| Material |
|---|
| Housing | Die cast zinc |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
| Reservoir | Die cast zinc |
| Filter insert | Borosilicate glass fiber |
