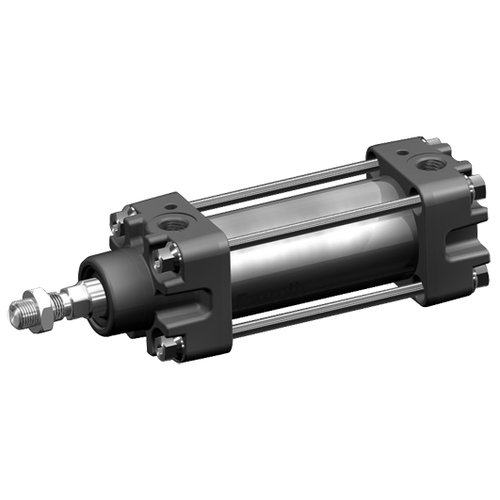

Tie Cylinder ISO 6431, Series 167 Aventics art. 1671012000
Specifications
| Standards | ISO 6431 |
| Compressed air connection | Internal thread |
| Working pressure min./max. | 2 ... 10 bar |
| Ambient temperature min./max. | -20 ... 75 °C |
| Medium temperature min./max. | -20 ... 75 °C |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Pressure for determining piston forces | 6 bar |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| Ø25 mm is not according to ISO 6431 |
| Material |
|---|
| Cylinder tube | Aluminum, anodized |
| Piston rod | Stainless steel, chrome-plated |
| Front cover | Aluminum |
| End cover | Aluminum |
| Seal | Acrylonitrile butadiene rubber |
