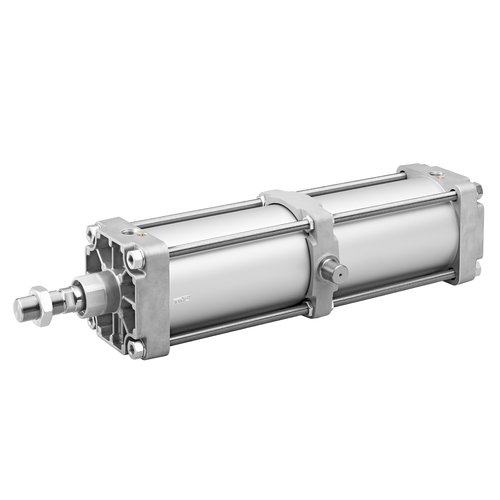

Tie Cylinder ISO 15552, ITS Series Aventics art. R480627518
Specifications
| Standards | ISO 15552 |
| Certificates | ATEX optional |
| Compressed air connection | Internal thread |
| Working pressure min./max. | 2 ... 10 bar |
| Ambient temperature min./max. | -20 ... 80 °C |
| Medium temperature min./max. | -20 ... 80 °C |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Pressure for determining piston forces | 6.3 bar |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| The trunnion mounting is positioned in the center at the factory and can be adjusted later. ATEX-certified cylinders with identification II 2G Ex h IIB T4 Gb / II 2D Ex h IIIB T135°C Db_X can be generated in the Internet configurator. |
| Material |
|---|
| Cylinder tube | Aluminum, anodized |
| Piston rod | Stainless steel |
| Front cover | Die-cast aluminum |
| End cover | Die-cast aluminum |
| Seal | Acrylonitrile butadiene rubber |
| Nut for piston rod | Steel, galvanized |
| Scraper | Acrylonitrile butadiene rubber |
| Trunnion mounting | Nodular graphite iron |
| Tie-rods | Stainless steel |
