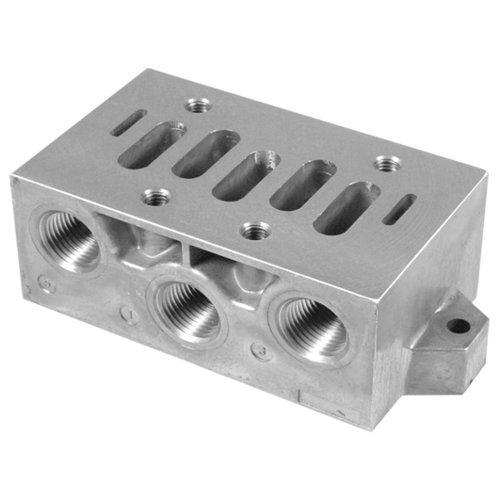

Single mounting plate Aventics art. R432025828
Specifications
| Version | Single plug-in wiring |
| Standards | ISO 5599-2 |
| Compressed air connection | according to ISO 5599 |
| Nominal flow Qn | 1500 l/min |
| Working pressure min./max. | -0,95 ... 10 bar |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -14 ... 50 °C |
| Medium | Compressed air |
| Number of valve positions max. | 1 |
| Direction of pneumatic port (1) | On the side |
| Direction of pneumatic port (2,4) | On the side |
| Direction of pneumatic port (12) | On the side |
| Direction of pneumatic port (14) | On the side |
| Exhaust (3,5) | uncollected exhaust |
| Exhaust type | Ports separated |
| Tightening torque for mounting screws | 3 Nm |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| Material |
|---|
| Housing | Die-cast aluminum, painted gray |
| Surface | anodized |
| Base plate | Die-cast aluminum |
| Seal | Aluminum, anodized |
