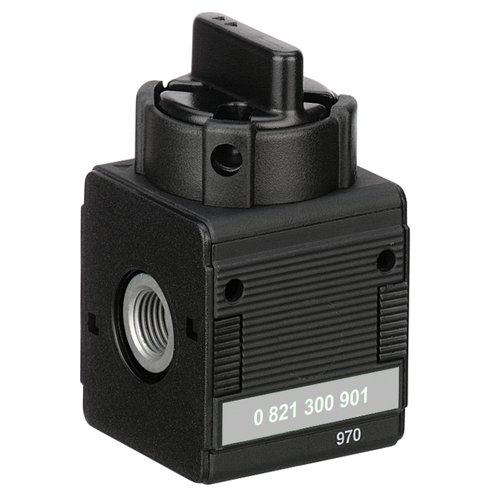

Shut-off valves Aventics art. 0821300901
Specifications
| Version | Ball valve |
| Activation | Mechanical |
| Lock type | lockable |
| Actuating element | rotary switch |
| Sealing principle | metal/metal sealing |
| Certificates | suitable for ATEX |
| Nominal flow Qn | 3000 l/min |
| Working pressure min./max. | 0 ... 16 bar |
| Ambient temperature min./max. | -10 ... 60 °C |
| Medium temperature min./max. | -10 ... 60 °C |
| Medium | Compressed air Neutral gases |
| Weight | 0,36 kg |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . Suitable for use in Ex zones 1, 2, 21, 22. A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180° about the vertical axis. Please see the operating instructions for further details. |
| Material |
|---|
| Housing | Die cast zinc |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
| Actuating element | Polyoxymethylene |
