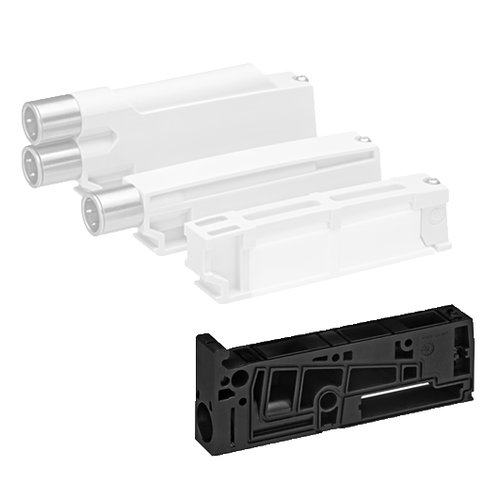

Set of elements for expansion Aventics art. R412025076
Specifications
| Working pressure min./max. | -0,95 ... 10 bar |
| Ambient temperature min./max. | -10 ... 60 °C |
| Medium | Compressed air |
| Max. particle size | 40 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| The supply plates with switch-off voltage monitoring are equipped with electronics that monitor if the voltage falls safely below the switch-off voltage threshold. The supply plate must be positioned to the left of the valves to be monitored. The supply plates can only be used in conjunction with an AV valve system with fieldbus connection. When using polyurethane tubing, we recommend using additional stiffener sleeves. For push-in fittings, only use plug accessories made of plastic (polyamide) from our catalog. |
| Material |
|---|
| Housing | Polyarylamide, fiber-glass reinforced Aluminum |
| Seals | Nitrile rubber |
