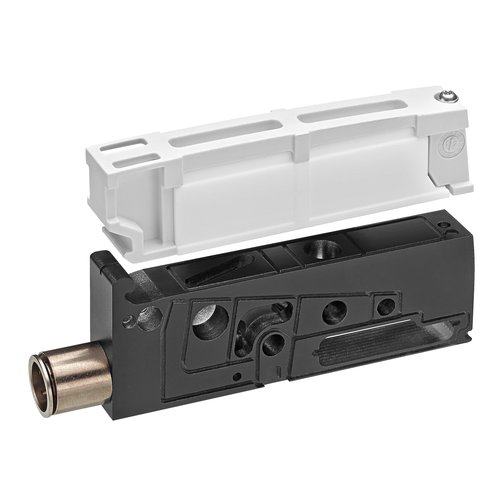

Set of elements for expansion Aventics art. R412022742
Specifications
| Ambient temperature min./max. | -10 ... 60 °C |
| Medium temperature min./max. | -10 ... 60 °C |
| Max. power consumption | 1 A |
| Protection class | IP65 |
| Weight | 0,125 kg |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| When using polyurethane tubing, we recommend using additional stiffener sleeves. For push-in fittings, only use plug accessories made of plastic (polyamide) from our catalog. |
| Material |
|---|
| Housing | Polyamide Aluminum |
| Seal | Nitrile rubber |
