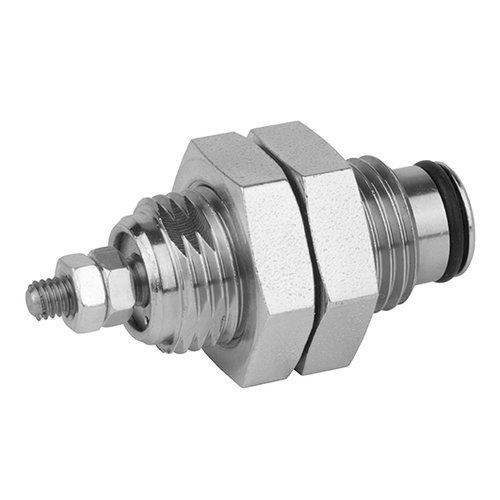

Screw-in cylinder Aventics art. 0822406910
Specifications
| Working pressure min./max. | 2 ... 8 bar |
| Ambient temperature min./max. | -20 ... 80 °C |
| Medium temperature min./max. | -20 ... 80 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air | 0 ... 1 mg/m³ |
| Pressure for determining piston forces | 6 bar |
| Spring force min. - max. | For the min.-max. spring force [N] in relation to piston diameter and stroke S, please refer to the table of dimensions. |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| Material |
|---|
| Cylinder tube | Brass, nickel-plated |
| Piston rod | Stainless steel |
| Front cover | Brass |
| Nut for piston rod | Steel, galvanized |
