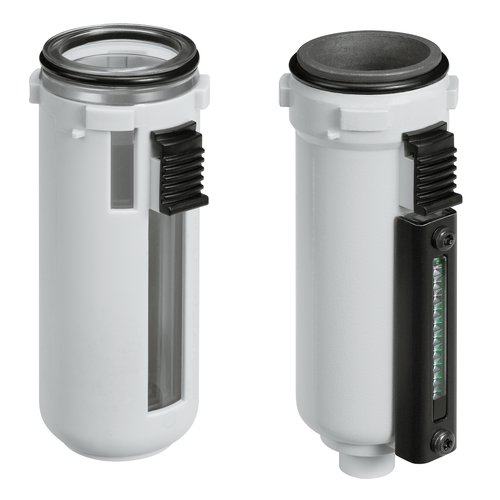

Receivers Aventics art. R412006358
Specifications
| Version | Reservoir |
| Certificates | suitable for ATEX |
| Working pressure min./max. | 0 ... 16 bar |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air Oil |
| Lubricator reservoir volume | 40 cm³ |
| Weight | See table |
| Material |
|---|
| Reservoir | Polycarbonate Die cast zinc |
| Protective guard | Polyamide |
| Seal | Acrylonitrile butadiene rubber |
