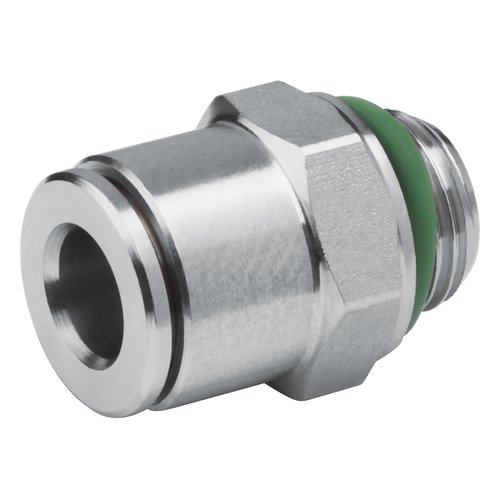

QR2-C series high quality steel Aventics art. R412004889
SKU: R412004889
Categories: Actuators and Grippers, Pneumatic Cylinders
Specifications
| Working pressure min./max. | -0,95 ... 16 bar |
| Ambient temperature min./max. | -20 ... 150 °C |
| Weight per piece | See table |
| The series QR1 (plastic) and QR2 (metal) can not be combined Thread seal with captive O-ring |
| For further information about assembling and tolerances of adaptable tubing can be found in the “Technical information” document (available in the MediaCentre). |
| Material |
|---|
| Housing | Stainless steel |
| Seal | Fluorocaoutchouc |
| Tooth lock washer | Stainless steel |
| Release ring | Stainless steel |
| Thread | Stainless steel |
