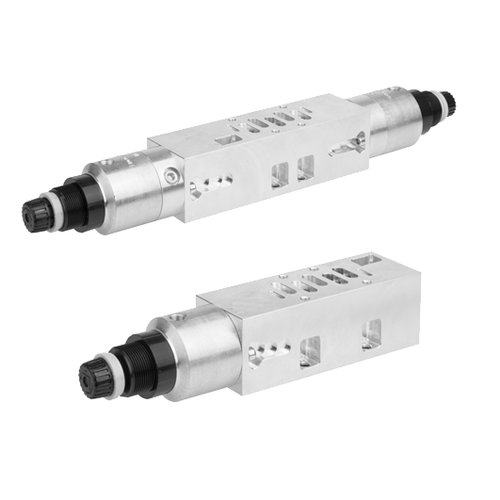

Pressure regulator Aventics art. R422103093
Specifications
| Working pressure min./max. | 12 bar |
| Adjustment range min./max. | 0,5 ... 8 bar |
| Ambient temperature min./max. | -15 ... 50 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Tightening torque for mounting screws | 5 Nm |
| Weight | See table |
| The delivered product may vary from that in the illustration. |
| Material |
|---|
| Housing | Aluminum |
| Seals | Butadiene rubber |
