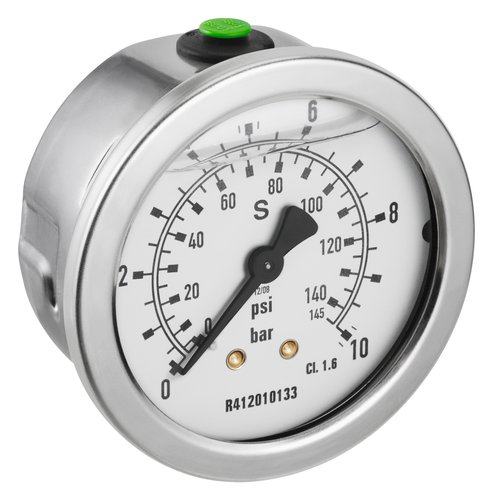

Pressure gauges Aventics art. R412010134
Specifications
| Version | Bourdon tube pressure gauge |
| Version | with glycerin filling |
| Seal | Axial |
| Standardization | EN 837-1 |
| Class | 1,6 |
| Ambient temperature min./max. | -25 ... 60 °C |
| Medium | Compressed air |
| Main scale unit (outside) | bar |
| Main scale color (outside) | Black |
| Secondary scale unit (inside) | psi |
| Secondary scale color (inside) | Black |
| Background color | White |
| Pointer color | Black |
| Weight | 0,26 kg |
| Order axial seal separately |
| Material |
|---|
| Housing | Stainless steel |
| Thread | Brass |
| Viewing window | Polystyrene |
