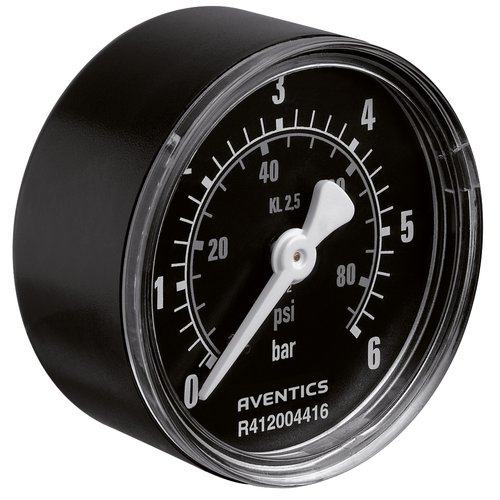

Pressure gauges Aventics art. R412003858
Specifications
| Version | Bourdon tube pressure gauge |
| Standardization | EN 837-1 |
| Class | 2,5 |
| Ambient temperature min./max. | -40 ... 60 °C |
| Medium | Compressed air |
| Main scale unit (outside) | bar |
| Main scale color (outside) | White |
| Secondary scale unit (inside) | psi |
| Secondary scale color (inside) | Grey |
| Background color | Black |
| Pointer color | White |
| Weight | See table |
| Material |
|---|
| Housing | Acrylonitrile butadiene styrene |
| Thread | Brass |
| Viewing window | Polystyrene |
| Seal | Polytetrafluorethylene |
