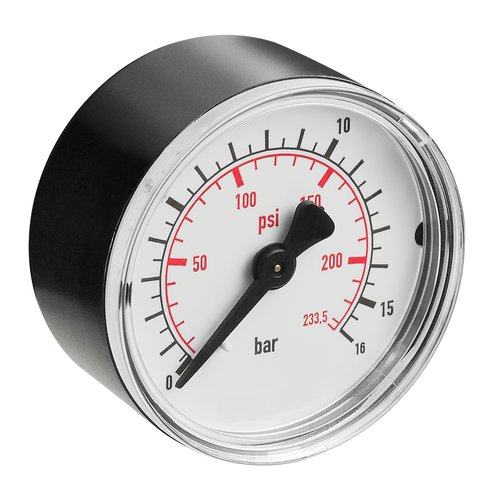

Pressure gauges Aventics art. 3530200130
Specifications
| Version | Bourdon tube pressure gauge |
| Seal | Axial |
| Standardization | EN 837-1 |
| Ambient temperature min./max. | -40 ... 60 °C |
| Medium | Compressed air |
| Main scale unit (outside) | bar |
| Main scale color (outside) | Black |
| Secondary scale unit (inside) | psi |
| Secondary scale color (inside) | Red |
| Background color | White |
| Pointer color | Black |
| Order axial seal separately |
| Material |
|---|
| Housing | Acrylonitrile butadiene styrene |
| Thread | Brass |
| Viewing window | Polystyrene |
