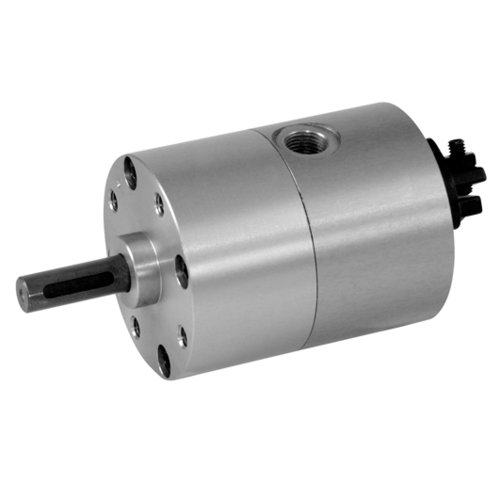

Partial rotation cylinders of rotary type Aventics art. 2705150400
Specifications
| Working pressure min./max. | See table |
| Ambient temperature min./max. | See table |
| Medium temperature min./max. | -5 ... 60 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air | 0 ... 1 mg/m³ |
| Theoretical torque at | 6 bar |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| Material |
|---|
| Housing | Aluminum, anodized |
| Seal | Acrylonitrile butadiene rubber |
| Axis | Steel |
