Mounting plate Aventics art. 5801750000
Specifications
| Standards | ISO 5599-1 |
| Working pressure min./max. | -1 ... 16 bar |
| Ambient temperature min./max. | -20 ... 70 °C |
| Medium temperature min./max. | -20 ... 70 °C |
| Medium | Compressed air |
| Number of valve positions max. | 1 |
| Direction of pneumatic port (2,4) | Down |
| Exhaust (3,5) | uncollected exhaust |
| Exhaust type | Ports separated |
| Weight | See table |

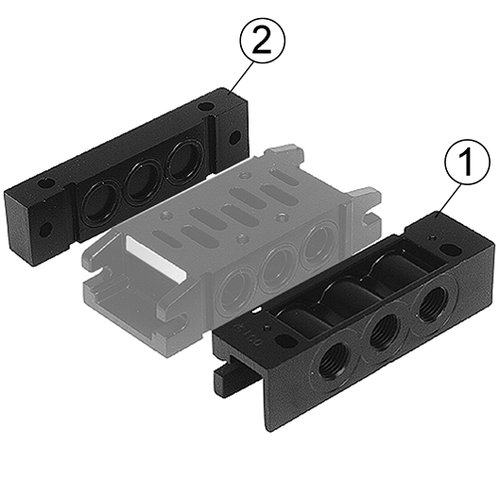

| An example configuration is illustrated. The delivered product may thus deviate from the illustration. |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| Material |
|---|
| Base plate | Die-cast aluminum, black painted |
| Seal | Acrylonitrile butadiene rubber |
