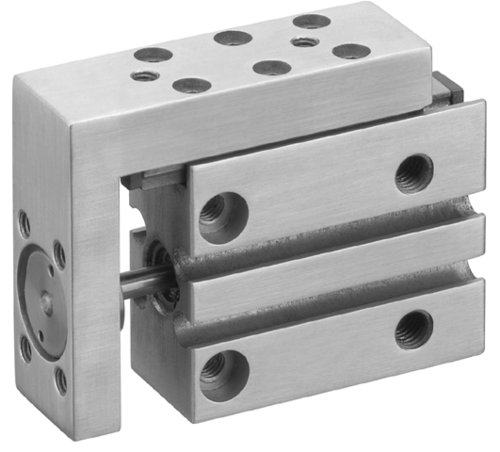

Mini caliper Aventics art. 0821406510
Specifications
| Working pressure min./max. | See table |
| Ambient temperature min./max. | 0 ... 60 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air | 0 ... 1 mg/m³ |
| Pressure for determining piston forces | 6.3 bar |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| Material |
|---|
| Housing | Aluminum, anodized |
| Piston rod | Stainless steel |
| Seal | Polyurethane |
| Ball rail table | Aluminum, anodized |
| Guide rail | Steel, hardened |
