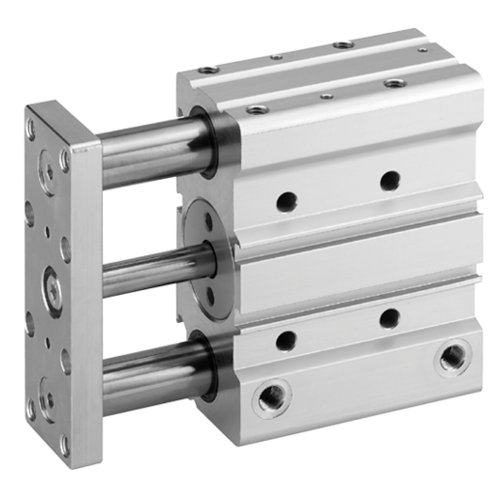

Cylinders with integrated guides, GPC-BV Series Aventics art. 0822063003
Specifications
| Working pressure min./max. | See table |
| Ambient temperature min./max. | -10 ... 70 °C |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Pressure for determining piston forces | 6.3 bar |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| Note: Only the Ø10 variants fits to sensor series ST4. The sensor series ST6 and SN3 can be used for all other Ø variants. |
| Material |
|---|
| Housing | Aluminum, anodized |
| Seal | Polyurethane |
| Front plate | Steel, galvanized |
| Guide rod | Stainless steel |
| Bearing | Sintered bronze |
| Piston rod | Stainless steel |
