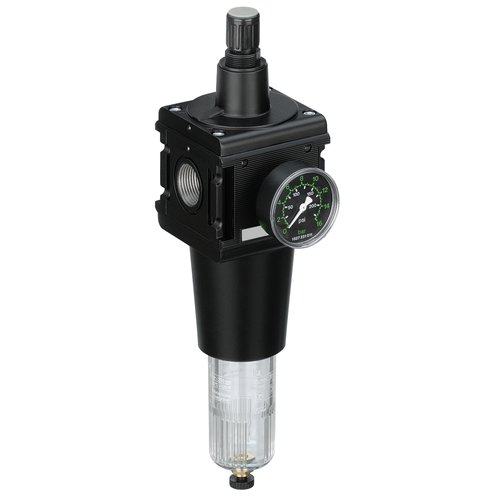

Control valve with filter Aventics art. 0821300850
Specifications
| Version | 1-part, Can be assembled into blocks |
| Parts | Filter pressure regulator |
| Mounting orientation | vertical |
| Certificates | suitable for ATEX |
| Working pressure min./max. | 1,5 ... 16 bar |
| Ambient temperature min./max. | -10 ... 60 °C |
| Medium temperature min./max. | -10 ... 60 °C |
| Medium | Compressed air Neutral gases |
| Nominal flow Qn | 15000 l/min |
| Regulator type | Diaphragm-type pressure regulator |
| Regulator function | with relieving air exhaust |
| Adjustment range min./max. | 0,5 ... 10 bar |
| Pressure supply | single |
| Filter reservoir volume | 125 cm³ |
| Filter element | exchangeable |
| Max. Internal air consumption | 0,5 l/min |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . Suitable for use in Ex zones 1, 2, 21, 22. Note: Polycarbonate reservoirs are susceptible to solvents, supplementary information can be found at "Customer information". A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180° about the vertical axis. Please see the operating instructions for further details. Also suitable for separation of fluid oil or water due to the design. The rear pressure gauge connection on the pressure regulator is closed with a blanking plug, the front connection is open. Depending on the customer application, a second blanking plug may be necessary. Please order separately (see accessories). Mounting: mounting bracket 1821336017 / block assembly kit 1827009593 | |
| Max. achievable compressed air class acc. to ISO 8573-1:2010 | 7 : 7 : - |
| Material |
|---|
| Housing | Die-cast aluminum |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
| Reservoir | Polycarbonate Die cast zinc |
| Protective guard | Steel |
| Filter insert | Polyethylene |
