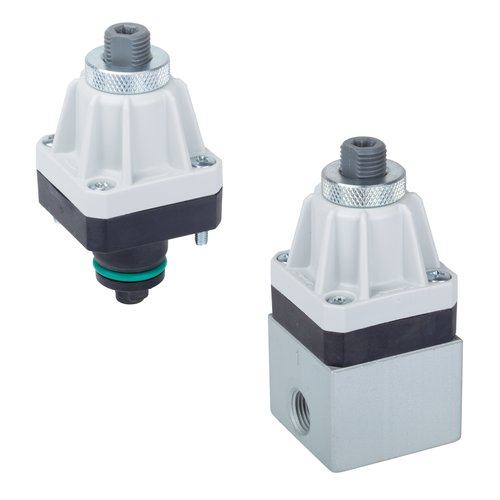

Control Valve Cartridge Aventics art. R414010006
Specifications
| Version | Diaphragm-type valve |
| Pressure supply | Cartridge Cartridge with aluminum base body |
| Regulator function | Without relieving exhaust |
| Mounting orientation | Any |
| Certificates | ASTM G-93 RoHS Conforms with REACH |
| Working pressure min./max. | 0,2 ... 10 bar |
| Adjustment range min./max. | 0,2 ... 2 bar |
| Ambient temperature min./max. | -5 ... 50 °C |
| Medium temperature min./max. | -5 ... 50 °C |
| Medium | Oxygen Compressed air Neutral gases |
| Nominal flow Qn | 250 l/min |
| Weight | See table |
| An example configuration is illustrated. The delivered product may thus deviate from the illustration. |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). | |
| Cleanliness level | Oil and grease-free, non-volatile residue <33mg/m3 |
| Base body | Aluminum, anodized |
| Guide insert | polyphenylene sulfide |
| Cartridge | Polyarylamide |
| Valve guide | polyphenylene sulfide |
| Diaphragm | Fluorocarbon caoutchouc |
| Seal | Fluorocarbon caoutchouc |
