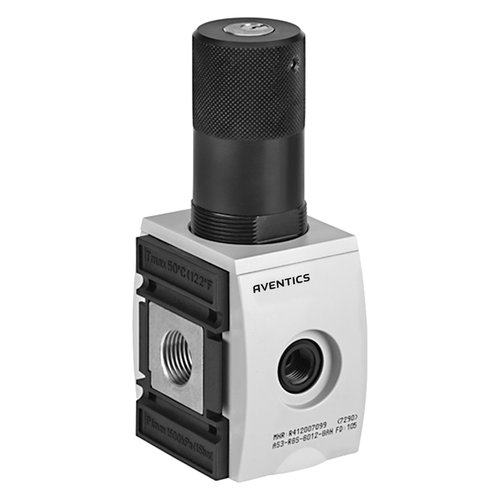

Control valve Aventics art. R412009095
Specifications
| Parts | Pressure regulator |
| Mounting orientation | Any |
| Working pressure min./max. | 0,5 ... 16 bar |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air Neutral gases |
| Regulator type | Diaphragm-type pressure regulator Can be assembled into blocks |
| Regulator function | with relieving air exhaust |
| Adjustment range min./max. | 0,5 ... 16 bar |
| Pressure supply | single |
| Activation | pneumatically |
| Weight | 1,07 kg |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The rear pressure gauge connection on the pressure regulator is closed with a blanking plug, the front connection is open. Depending on the customer application, a second blanking plug may be necessary. Please order separately (see accessories). A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180° about the vertical axis. Please see the operating instructions for further details. Relieving exhaust (≤ 0.3 bar over set pressure). With rear exhaust (> 3 bar ). |
| Material |
|---|
| Housing | Polyamide |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
| Threaded bushing | Die cast zinc |
