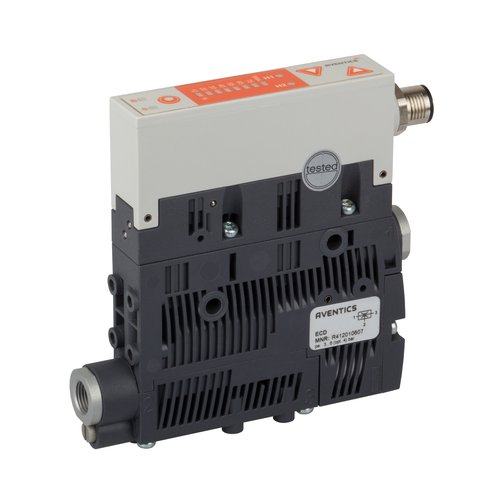

Compact ejector Aventics art. R412010613
Specifications
| Activation | Electrically |
| vacuum switch | electronic |
| Working pressure min./max. | 2 ... 6 bar |
| Working pressure p.opt. | 4 bar |
| Ambient temperature min./max. | 0 ... 50 °C |
| Medium temperature min./max. | 0 ... 50 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air | 0 ... 1 mg/m³ |
| Protection class With valve plug connector | IP65 |
| Duty cycle according to DIN VDE 0580 standard | 100 % |
| Max. vacuum level at p.opt | 81,5 % |
| Hysteresis | adjustable |
| Repeatability (% of full scale value) | ± 1 % |
| DC operating voltage | 24 V |
| Voltage tolerance DC | -20% / +10% |
| Switch output current Max. | 180 mA |
| Power consumption Solenoid valve | 1,3 W |
| Weight | 0,195 kg |
| Note: All data refers to an ambient pressure of 1.013 bar and an ambient temperature of 20 °C . The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. The IO-Link device description (IODD) for the ECD compact ejector is available for download in the Media Center. |
| Material |
|---|
| Housing | Polyamide |
| Seal | Acrylonitrile butadiene rubber |
| Nozzle | Brass |
| Silencer | Polyethylene |
