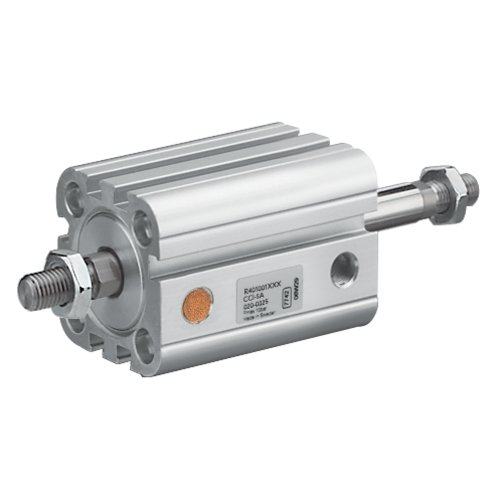

Compact cylinder ISO 21287 Aventics art. R422001690
Specifications
| Standards | ISO 21287 |
| Compressed air connection | Internal thread |
| Working pressure min./max. | 1,5 ... 10 bar |
| Ambient temperature min./max. | -20 ... 80 °C |
| Medium temperature min./max. | -20 ... 80 °C |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Pressure for determining piston forces | 6.3 bar |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| With cylinders with external thread extension, dimension "A" is increased by the value of the thread extension. With cylinders with a piston rod extension, dimensions "WH" and "ZB" are increased by the value of the piston rod extension. Piston Ø 50/63, stroke < 5 mm: AF= 11 mm Piston Ø 80/100, stroke < 5 mm: AF= 15 mm |
| Material |
|---|
| Cylinder tube | Aluminum, anodized |
| Piston rod | Stainless steel |
| Front cover | Aluminum |
| End cover | Aluminum |
| Seal | Polyurethane |
| Nut for piston rod | Steel, galvanized |
| Scraper | Polyurethane |
