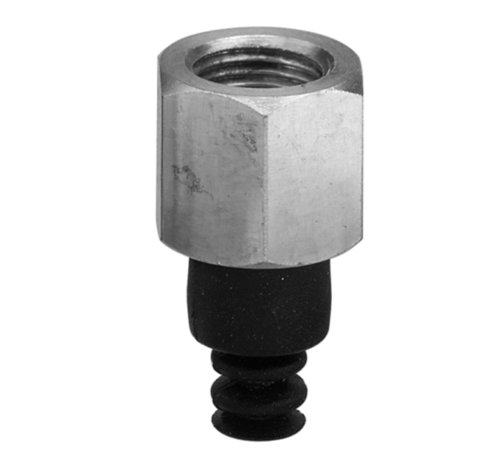

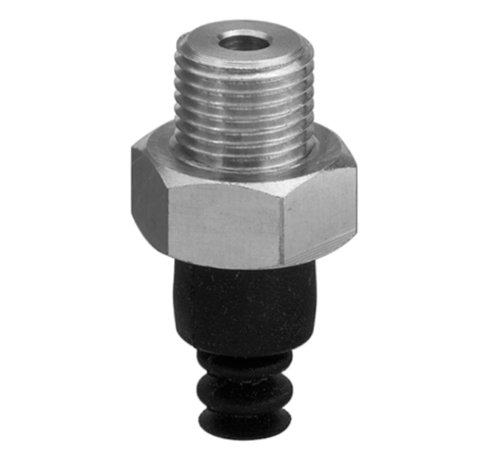

Bellows vacuum gripper, BSA series Aventics art. 1820415077
Specifications
| Ambient temperature min./max. | -10 ... 70 °C |
| Min./max. temporary ambient temperature (<30 s) | -30 ... 120 °C |
| Hardness according to standard | 55 ± 5 Shore A |
| Abrasion value according to DIN 535 16 | 100-120 mm³ |
| Weight | See table |
| To be used on uneven, sensitive, and smooth to slightly rough surfaces. |
| Material |
|---|
| Connector | Aluminum |
| Vacuum | Acrylonitrile butadiene rubber |
