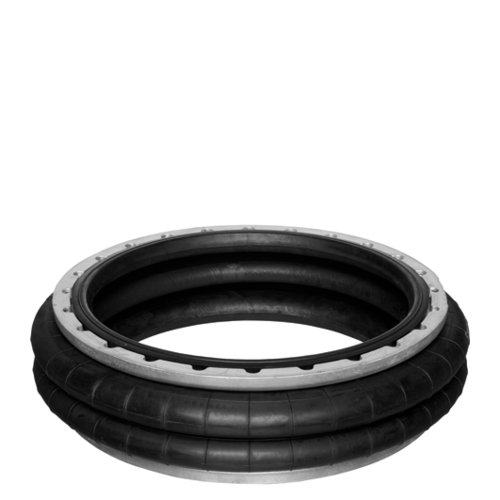

BCR Series Aventics art. 1946272000
Specifications
| Version | Bellow actuator with mounting ring |
| Functional principle | Single-acting, retracted without pressure |
| Working pressure min./max. | 0 ... 8 bar |
| Ambient temperature min./max. | -40 ... 70 °C |
| Medium | Compressed air |
| Permissible angle of tilt max. | 30 ° |
| Pressure for determining forces | 6 bar |
| Weight | See table |
| Compliance with the minimum height H min. as well as the maximum height H max. must be ensured with end stops. Use at operating height ≥ Hmax: only permitted upon approval by AVENTICS Further information on vibration isolation can be found in the “Technical information” document (available in the MediaCentre). | |
| Reduced service life at a temperature greater than | 50 °C |
| Material |
|---|
| Bellow | caoutchouc/butadiene caoutchouc |
| clamping ring | Aluminum |
| Mounting ring | Aluminum |
