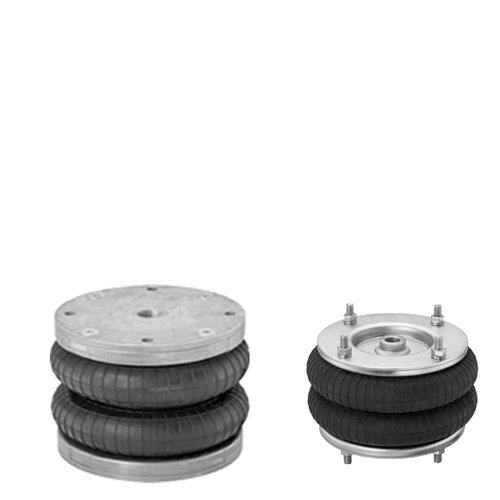

BCC Series Aventics art. R412020595
Specifications
| Version | Bellow actuator with mounting ring and cover |
| Functional principle | Single-acting, retracted without pressure |
| Working pressure min./max. | 0 ... 8 bar |
| Ambient temperature min./max. | See table |
| Medium | Compressed air |
| Permissible angle of tilt max. | 25 ° |
| Pressure for determining forces | 6 bar |
| Weight | See table |
| Compliance with the minimum height H min. as well as the maximum height H max. must be ensured with end stops. Use at operating height ≥ Hmax: only permitted upon approval by AVENTICS Further information on vibration isolation can be found in the “Technical information” document (available in the MediaCentre). The bellow can be exchanged. |
| Material |
|---|
| Bellow | Chloroprene rubber caoutchouc/butadiene caoutchouc |
| Front cover | Aluminum Steel, galvanized |
| End cover | Aluminum Steel, galvanized |
