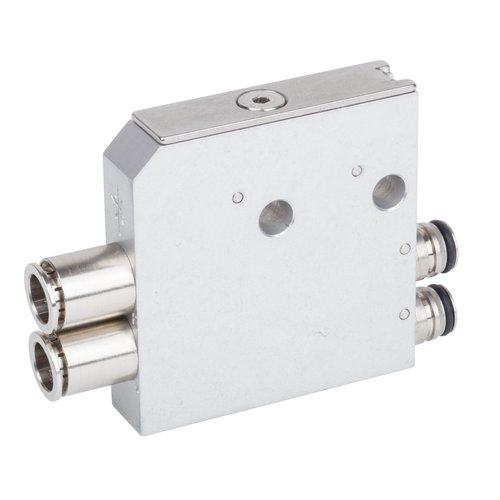

Air removal module: on Aventics art. R422003188
Specifications
| Working pressure min./max. | 0 ... 10 bar |
| Ambient temperature min./max. | -10 ... 60 °C |
| Medium | Compressed air |
| Weight | 0,08 kg |
| When using polyurethane tubing, we recommend using additional stiffener sleeves. Particularly suitable for 5/3 CC valves, since the remaining pressure in the actuator can be exhausted when the control pressure is applied. The exhaust module and the air circuit should be tested monthly to ensure they function correctly. Applications with vertical actuators with exhaust or pressure throttles and a maximum load of 15 kg as well as up to a speed of Vmax < 33 mm/s . |
| Material |
|---|
| Housing | Aluminum |
| Seals | Nitrile rubber |
