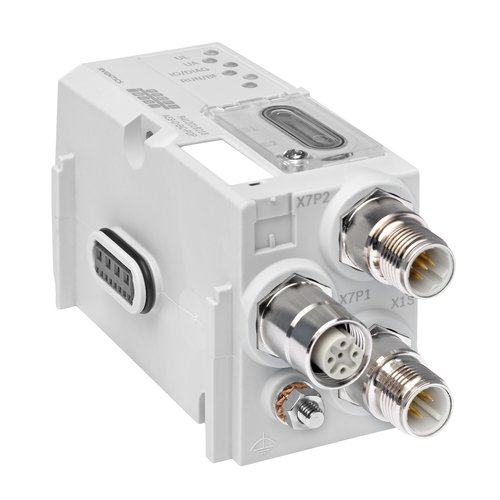

AES Series Aventics art. R412018220
Specifications
| Version | Bus coupler |
| Ambient temperature min./max. | -10 ... 60 °C |
| Operational voltage electronics | 24 V DC |
| Electronics voltage tolerance | -25% / +25% |
| Power consumption electronics | 0,1 A |
| Operating voltage, actuators | 24 V DC |
| Total current for actuators | 4 A |
| Protection class | IP65 |
| Cycle time at 256 bits | < 1 ms |
| Number of solenoid coils max. | 128 |
| Number of valve positions max. | 64 |
| Logic/actuator voltage | Galvanically isolated |
| Diagnosis | Short circuit Undervoltage |
| I/O module extension max. | 10 |
| Generic emission standard in accordance with norm | EN 61000-6-4 |
| Generic immunity standard in accordance with norm | EN 61000-6-2 |
| Weight | See table |
| You will find assignment schemes for the product in the operating instructions, or contact the nearest AVENTICS sales office. Voltage and short-circuit monitoring per LED. During cyclical data transfer, the bus coupler can send 512 bits of input data to the controller and receive 512 bits of output data from the controller. |
| Material |
|---|
| Housing | Polyamide fiber-glass reinforced |
