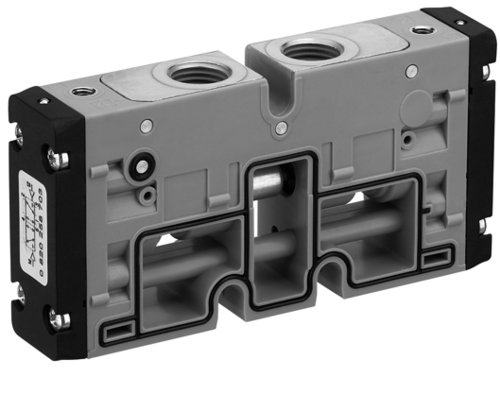

5/3-pneumatic distributor Aventics art. 0820259001
Specifications
| Version | Spool valve, positive overlapping |
| Activation | pneumatically |
| Pilot | External |
| Sealing principle | Soft sealing |
| Flow rate value | 1300 l/min |
| Working pressure min./max. | -0,9 ... 10 bar |
| Control pressure min./max. | 3 ... 10 bar |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Mounting on manifold strip | P-strip |
| Mounting screw tightening torque | 2,5 Nm |
| Weight | 0,203 kg |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| Material |
|---|
| Housing | Polyamide fiber-glass reinforced |
| Seals | Acrylonitrile butadiene rubber |
| Front plate | Polyamide fiber-glass reinforced |
| Threaded bushing | Brass Die cast zinc, chrome-plated nickel-plated |
