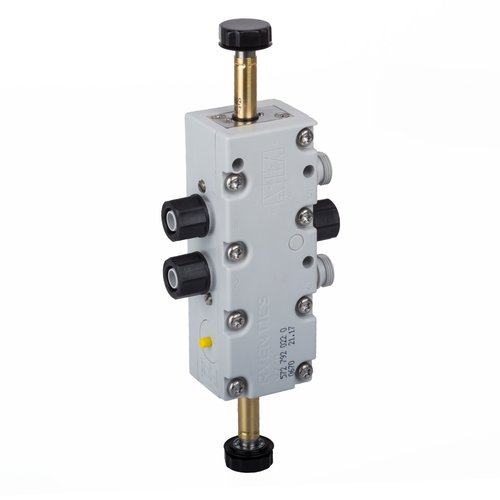

5/2-pneumatic distributor Aventics art. R412009690
Specifications
| Version | Diaphragm poppet valve |
| Activation | Electrically |
| Pilot | Internal |
| Sealing principle | Soft sealing |
| Blocking principle | Single base plate principle Plate principle |
| Working pressure min./max. | 1,5 ... 10 bar |
| Ambient temperature min./max. | -25 ... 50 °C |
| Medium temperature min./max. | -25 ... 50 °C |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Nominal flow Qn | 700 l/min |
| Protection class with connection | IP65 |
| Reverse polarity protection | Protected against polarity reversal |
| Compatibility index | 14 |
| Duty cycle | 100 % |
| Typ. switch-on time | 16 ms |
| Typ. switch-off time | 35 ms |
| Mounting on manifold strip | PRS strip |
| Weight | 0,221 kg |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). Basic valve without coil |
| Material |
|---|
| Housing | Polyoxymethylene Polyarylamide |
| Seals | Acrylonitrile butadiene rubber |
