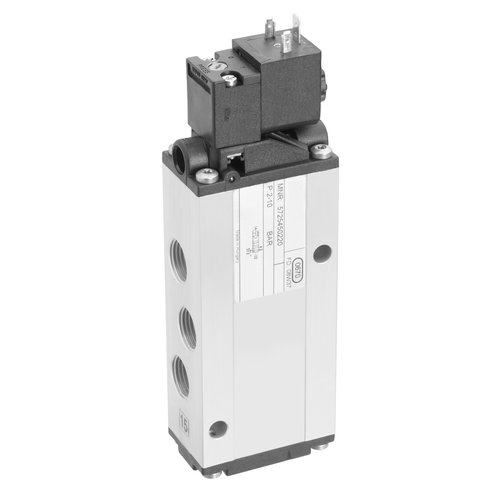

5/2-pneumatic distributor Aventics art. R412000244
Specifications
| Version | Spool valve, positive overlapping |
| Activation | Electrically |
| Sealing principle | Soft sealing |
| Working pressure min./max. | See table |
| Control pressure min./max. | See table |
| Ambient temperature min./max. | See table |
| Medium temperature min./max. | See table |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Oil content of compressed air | 0 ... 1 mg/m³ |
| Nominal flow Qn | 4100 l/min |
| Pilot control exhaust | with directional pilot air exhaust |
| Connector standard | EN 175301-803:2006 |
| Reverse polarity protection | Protected against polarity reversal |
| Compatibility index | See table |
| Duty cycle | 100 % |
| Weight | See table |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| *Note: Basic valves feature a maximum working pressure of 16 bar. When combined with standard CNOMO pilots, the maximum working pressure is 10 bar. |
| Material |
|---|
| Housing | Aluminum Polyamide fiber-glass reinforced |
| Seals | Acrylonitrile butadiene rubber Polyurethane |
