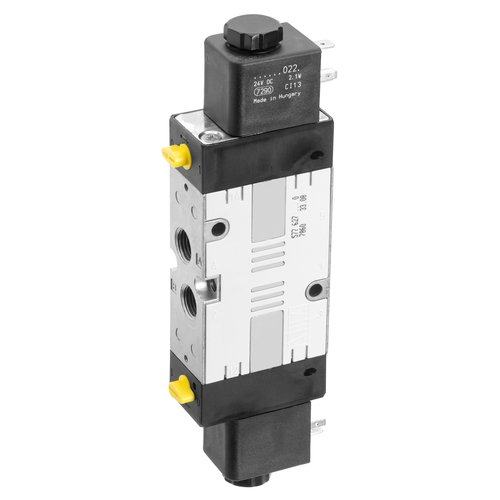

5/2-pneumatic distributor Aventics art. 5776035302
Specifications
| Version | Spool valve, positive overlapping |
| Activation | Electrically |
| Sealing principle | Soft sealing |
| Working pressure min./max. | See table |
| Control pressure min./max. | 3 ... 10 bar |
| Ambient temperature min./max. | -25 ... 50 °C |
| Medium temperature min./max. | -25 ... 50 °C |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Oil content of compressed air | 0 ... 1 mg/m³ |
| Nominal flow Qn | 1200 l/min |
| Nominal flow 1 ▶ 2 | 1200 l/min |
| Nominal flow 2 ▶ 3 | 1200 l/min |
| Pilot control exhaust | with directional pilot air exhaust |
| Connector standard | EN 175301-803:2006 |
| Reverse polarity protection | Protected against polarity reversal |
| Compatibility index | 13 14 |
| Duty cycle | 100 % |
| Mounting on manifold strip | P-strip PRS strip |
| Weight | See table |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| ATEX optional: ATEX version can be produced by combining the basic valve without coil with an ATEX coil. ATEX ID: see ATEX coils catalog page. |
| Material |
|---|
| Housing | Die cast zinc Polyamide fiber-glass reinforced Polyamide fiber-glass reinforced Die cast zinc |
| Seals | Acrylonitrile butadiene rubber |
