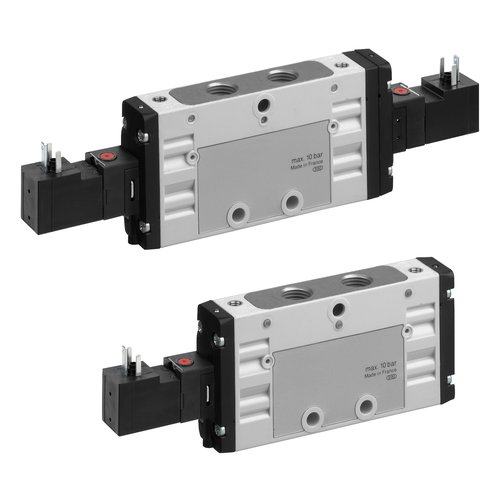

5/2-pneumatic distributor Aventics art. 0820058503
Specifications
| Version | Spool valve, positive overlapping |
| Activation | Electrically |
| Pilot | Internal |
| Sealing principle | Soft sealing |
| Working pressure min./max. | See table |
| Control pressure min./max. | See table |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Nominal flow Qn | 1500 l/min |
| Connector standard | ISO 15217 |
| Protection class with connection | IP65 |
| Duty cycle | 100 % |
| Generic emission standard in accordance with | EN 50081:1992 |
| Mounting on manifold strip | P-strip |
| Mounting screw tightening torque | 2,5 Nm |
| Weight | See table |
| Comment | An example configuration is illustrated. The delivered product may thus deviate from the illustration. |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| Material |
|---|
| Housing | Polyamide fiber-glass reinforced |
| Seals | Acrylonitrile butadiene rubber Hydrogenated nitrile butadiene rubber |
| Front plate | Polyamide fiber-glass reinforced |
| Threaded bushing | Brass Die cast zinc, nickel-plated chrome-plated |
